How to making switch mounting rail


How to making switch rail
Circuit breaker din rail roll forming machine technology

Item YX8-35
Equipment for production switch din rail.
Standard din rail profiles very easy installation in cutout switch, circuit breaker, chopper.

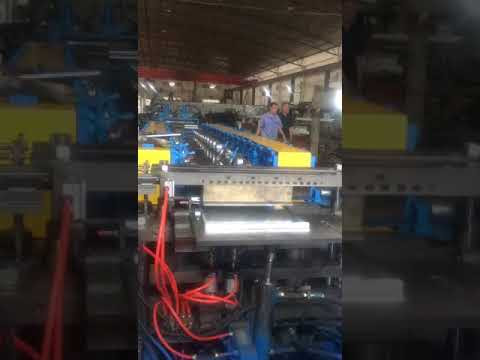

Din Rail Roll former with hole


Superda guarantee Channel roll former line design accordance with clients required drawing, machine is brand new. Specification and performance as stipulated in drawing and operation with good smooth. Formed din rail can be fix well with switch.
Channel din rail production equipment advantage
1, Roll former production line for producing steel switch rail.
2, PLC control system, automatically and easy handle.
3, Good quality roller with quench process, hardness reach HRC60-65 ℃.
4,Tracking cutting system with Cr12 Cutting blade.

Din rail using in electric cabinet


Channel rail circuit breaker din rail roll forming machine manufacturer
Din rail for circuit breaker switch, which widely using in electric industry such as electric cabinet.

Standard din rail profile after formed

C45 Din rail  channel production line process
Uncoiler straightener 2 in 1 →Servo feeder→ Guide device → Hydraulic Punch → roll forming machine →shear device (including knife)→ finished product rack

Customized din rail purlin drawing



Din Rail Production Line Machines List
Uncoiler   straightener
1、 Type：Manual Expansion
2、Parameter
1）Passive   discharge
2） Coil weight：<   2T
3）Coil inner D.：φ450mm-φ530mm
4）Max. Width.200mm
5)   Thickness .0.4-1.6mm
6)   Straightener roller :7 pcs
8)   Power.1.5kw


Servo Feeder
3.1 Max. feeding width:200mm
3.2  Feeding thickess: 0.4-1.6mm
3.3  Motor , 0.85ＫＷ(Yaskawa)

 Hydraulic hole punching system
3.1 Function：Hydraulic punch breach
3.2  Structure: set the length, automatic length measurement, automatic positioning reaches the set distance stop action , hydraulic cylinder driven punching die, stamping automatic shutdown.
3.3 Hydraulic system working pressure：16MPa
3.4 Hydraulic station：15KW（ Hydraulic punch hole/shear use same station）

Guide device

Switch rail roll forming machine system data

5.1  Forming Roller：16 stations，and add Rub-roll, To make sure the surface profile no scratches.
5.2  Side Panel：T.18mm ,A3 steel   Heavy duty 。
5.3  Rolling speeding: 5-8 m/min。
5.4  Roller material：#45，overall quenching, hardness HRC56-62 ℃.
5.5  Motor power：5.5KW。
5.6  Main Roller ：￠65mm，45 #。
5.7  Equipment base: 45 # H type using welded steel plate.
5.8  Transmission: chain drive.
5.9 Security: across the board with emergency stop buttons, easy to handle emergencies, to ensure that equipment and operator safety. And other gear in the chain and the staff could easily lead to injury transmission section covered with protective cover, to ensure the safety of workers.


Flat collect rack
Switch mounting rail making machine electrical control system
The entire line imported PLC control, LCD touch screen, man-machine interface. People interact with the PLC. Operator setting the program to run automatically (programmable control) and control process monitoring, production line operator control and modify the control parameters, and real-time monitoring the equipment status & parameters and fault indication. Workpiece length digital setting, adjustable length can be adjustable as well. Real-time monitoring of equipment operating status and fault indication.
Operation manual / automatic two styles. With manual and automatic switching function: In the manual mode, can be stand-alone operation, easy maintenance; In automatic mode, carry out full production run, in order to start; across the board with emergency stop buttons, easy to handle emergencies, to ensure that equipment and operating personnel Safety.
Machinery main components of the brand:
PLC control system: Siemens
Inverter: Taiwan Shilin
Encoder: Omron
Touch screen: Siemens
Some components are Schneider brand devices.
